Abrasion Resistant Multifunctional Ra150s Bench Top Metal Surface Roughness Profilometer

1 / 5

Abrasion Resistant Multifunctional Ra150s Bench Top Metal Surface Roughness Profilometer

Customization:	Available
Product Name:	Surface Roughness Profilometer
Keywords:	Roughness Contour Meter

Send Inquiry

Product Description

Basic Information

Model NO.	RA150S	Material	Metal
Feature	High Range, High Accuracy, High Resolution	Application	Test Roughness Value and Profile
Specification	International Standards	Production Capacity	500 Sets

Product Description

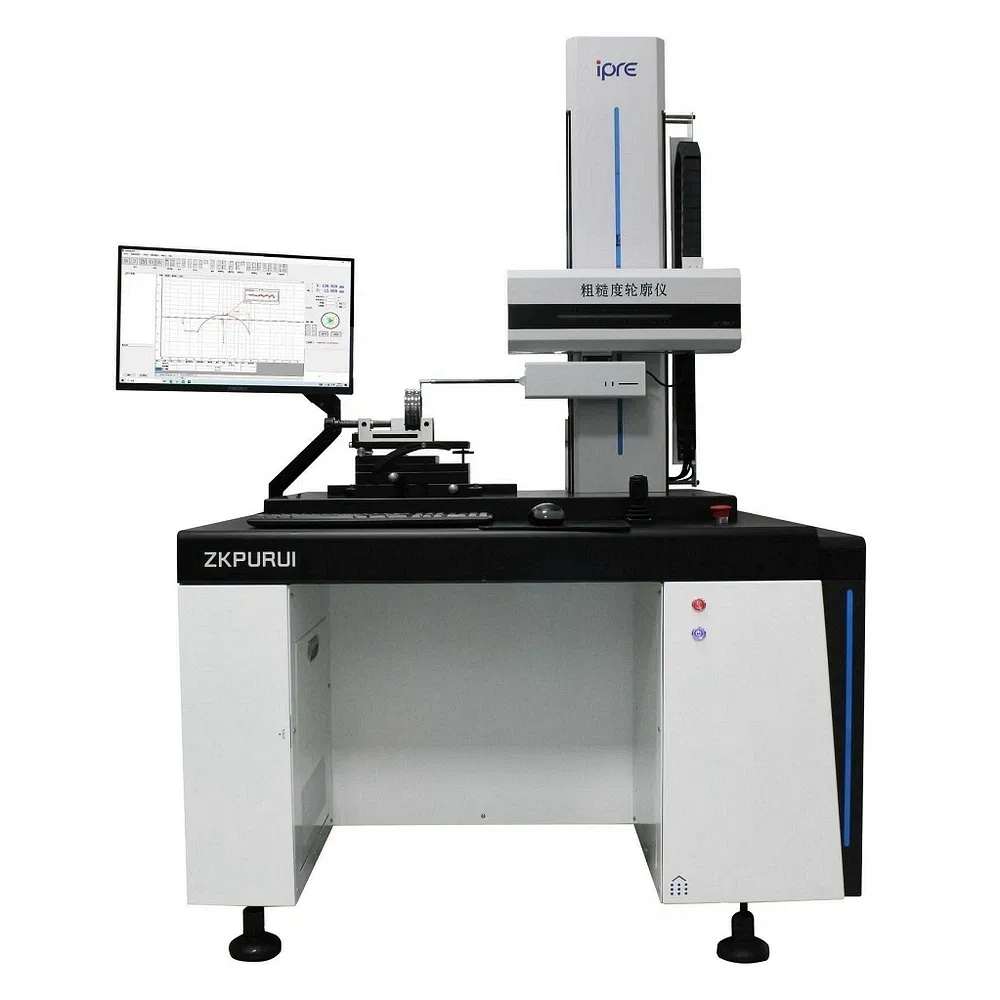

PRECISION SURFACE ROUGHNESS PROFILOMETER – ALL-IN-ONE MEASUREMENT SOLUTION

Discover the ultimate surface roughness and contour measurement machine engineered for precision manufacturing.

Advanced Tech: High-precision grating measurement technology with ultra-smooth grinding guide rails.

Motion Control: Non-contact linear motor delivering unparalleled accuracy and stability.

Ideal for industries demanding micron-level precision, this profilometer is your trusted partner for quality control and dimensional inspection of surface roughness, profile contours, and waviness.

Technical Specifications

Project / Model		RA150S
X-axis Guide Rail	Moving accuracy	≤±(1+\|0.02L\|)μm
X-axis Grating Ruler	Resolution	0.01μm
Date Sensor	Resolution	0.001μm (Roughness test)
Straightness		≤0.5μm/100mm
Roughness Range (Z1 axis)		±20mm
Evaluation Parameters		Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Wa, Wz, Wq, Wt, Pa, Pz, Pq, etc.
Sampling Length		0.08, 0.25, 0.8, 2.5, 8 (mm)
Repeatability		3%
Dimensions		1200 × 750 × 1800 (mm)

Detailed Performance

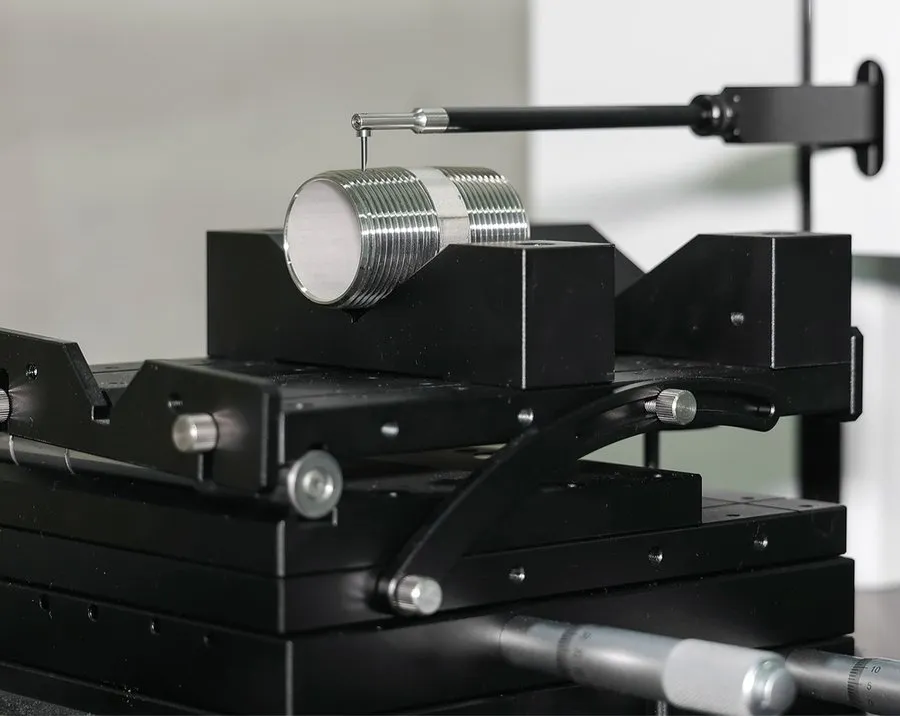

High-Precision Grating System

Advanced grating sensor technology ensures exceptional measurement accuracy and repeatability for even the most demanding surface analysis tasks.

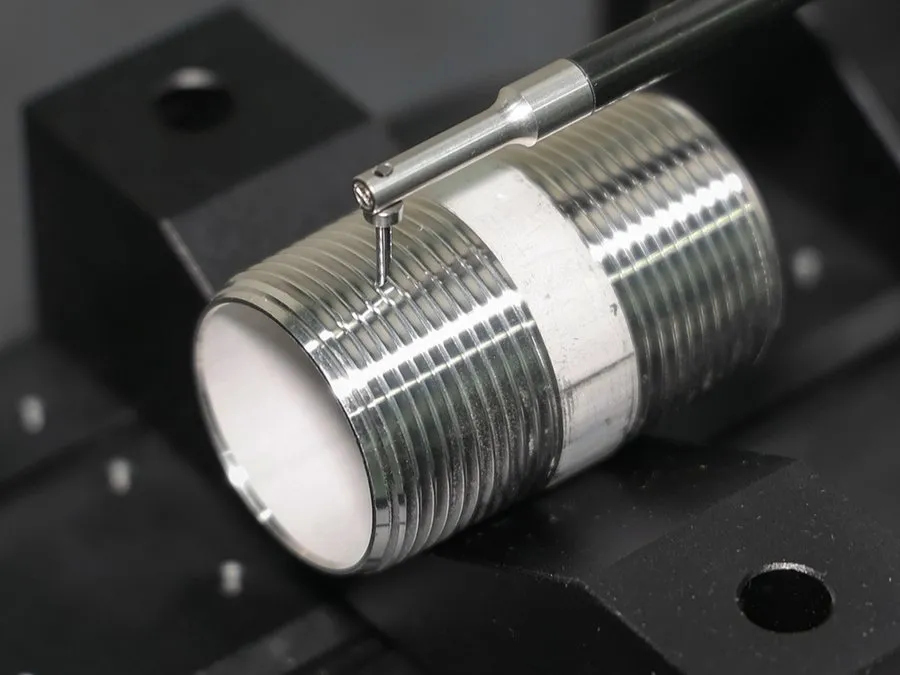

High-Resolution Detection

Captures micro-level surface details with superior resolution, enabling precise evaluation of roughness values and subtle profile variations.

Non-Contact Linear Motor

Utilizes a high-performance non-contact linear motor for smooth, vibration-free scanning, ensuring consistent results.

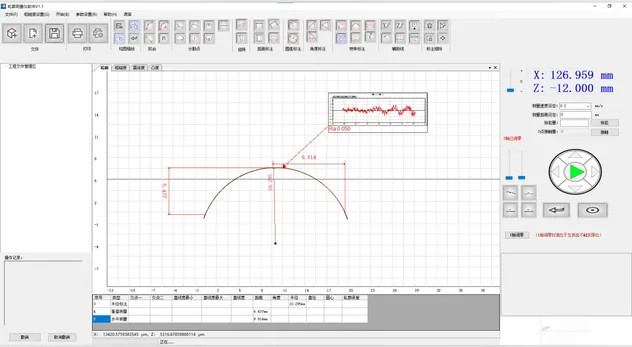

Intelligent Software System

Powerful data processing with automatic report printing in various formats.
Supports multiple international standards including ISO, DIN, JIS, and ANSI.
Database storage for long-term record keeping and result verification.

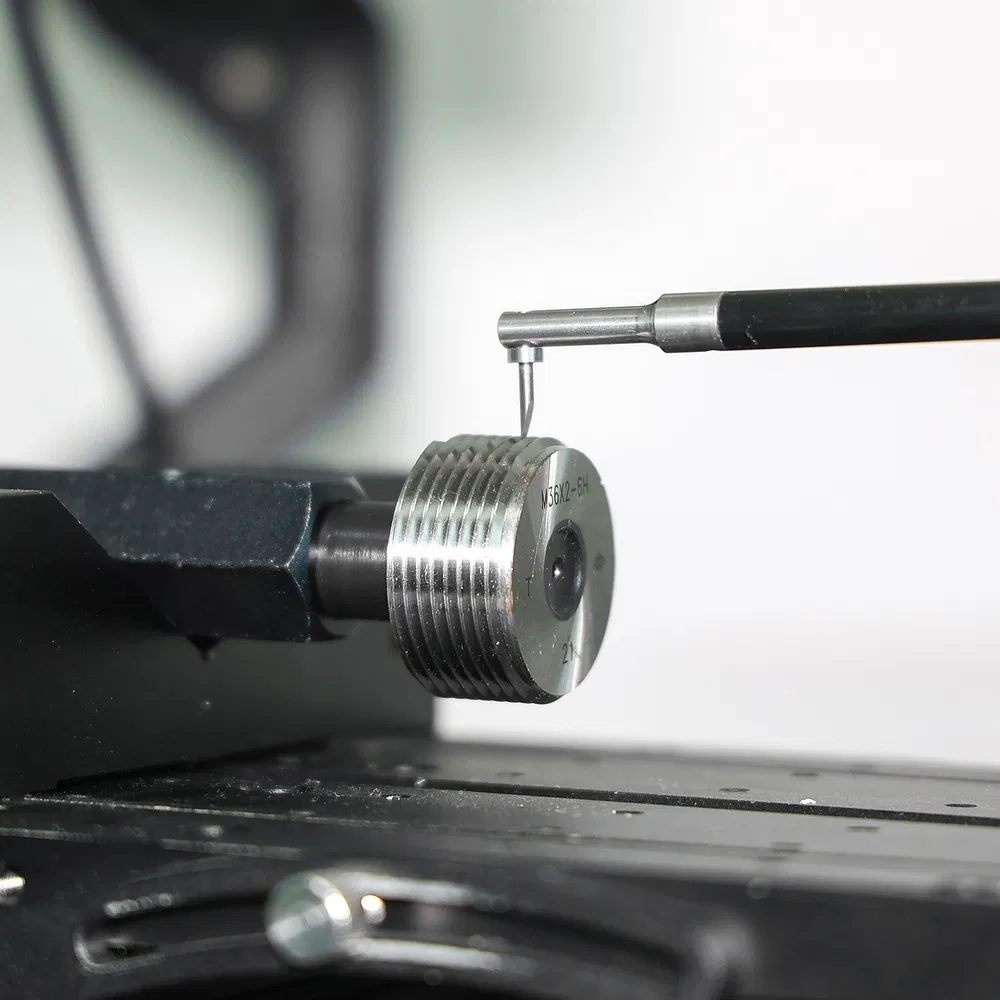

Special functions for wire rods, bearings, threads, and other contour measurements.
Adjustable speed and fast positioning for high-efficiency measurement.

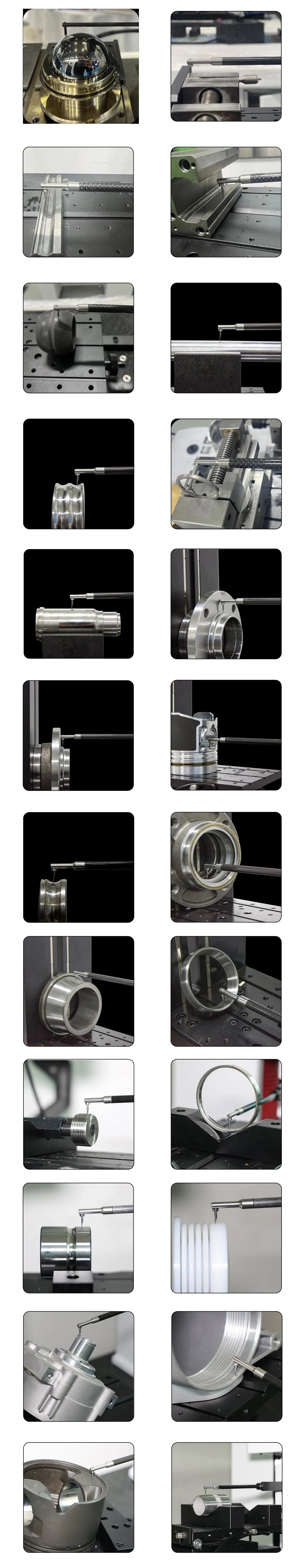

Application Scenarios

Frequently Asked Questions

Q1: What parameters can the RA150S measure?

It measures a wide range of parameters including roughness (Ra, Rz, Rq, Rt, etc.), ripple degree (Wa, Wz, Wq, etc.), and original profile parameters (Pa, Pz, Pq, etc.).

Q2: Does the equipment comply with international standards?

Yes, the system is designed according to GB/T10610-2009 standards and supports ISO, DIN, JIS, and ANSI parameter settings.

Q3: What is the benefit of the non-contact linear motor?

The non-contact linear motor drive ensures smooth, vibration-free scanning, which is critical for capturing high-precision surface details without distortion.

Q4: Can the software be customized for specific parts?

Yes, the intelligent software system can be customized to meet specific customer requirements for specialized workpiece contours like wire rods, bearings, and threads.

Q5: What is the typical delivery time for this equipment?

For regular stock items, delivery is typically within 7 days. Customized solutions generally take about 1 week for preparation and delivery.

Q6: What certifications does the product hold?

The manufacturing processes follow ISO9001 quality management, ISO14001 environmental management, and the products carry EU CE certification.
